Detail Specifications

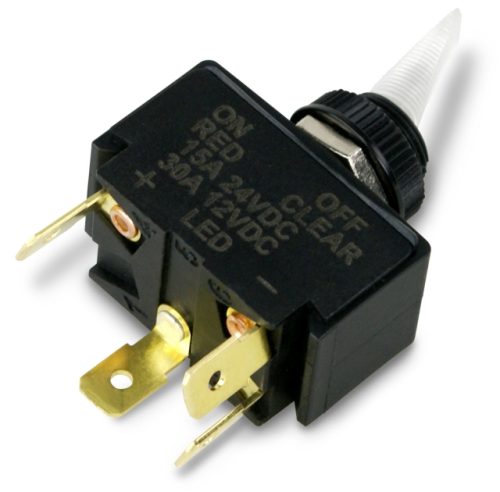

4P SPST ON-OFF Toggle Switch with LED indicated
4 Quick-connect terminals: 6.3mm*0.8mm
Rating: 30A 12VDC,15A 24VDC
Mechanical Operating Life: 100,000 cycles
Electrical Operating Life: 25,000 cycles at full load
Ingress Protection: IP65 only for Panel Seal
Mounting holes: 12.2mm Diameter
5.5mm max. Thickness
